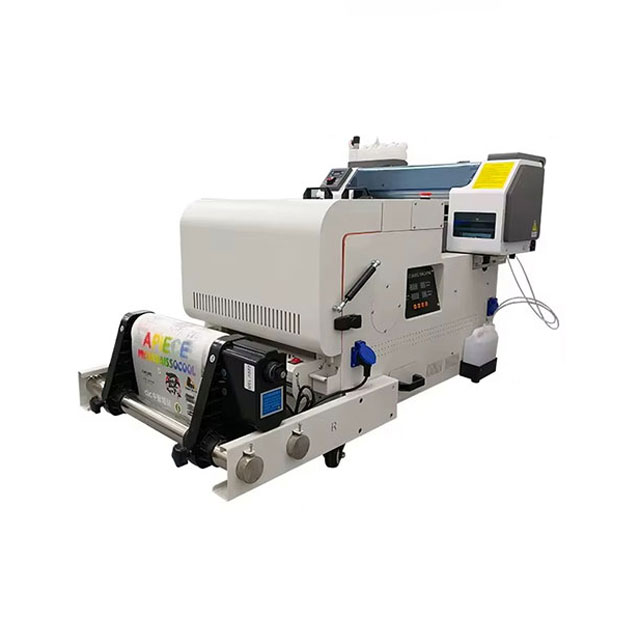

The Winner A1 DTF Printer is a 60 cm (24-inch) wide Direct-to-Film printer built for professional garment customization. Powered by four Epson I3200 printheads, it delivers high-speed, high-resolution printing with vivid colors and stable white-ink circulation to prevent clogging.
With speeds up to 8 m²/h, roll-to-roll capability, and integrated heating and drying, it ensures efficient and continuous production.
Ideal for T-shirt and apparel studios seeking larger output and industrial-grade stability, the Winner A1 offers consistent color, smooth operation, and reliable performance.



Direct shipping from the US, warehouse pickup available

INQUIRY

FEATURES

Industrial-Grade Printhead System – Equipped with four Epson I3200 PrecisionCore printheads, the Winner A1 delivers high-resolution, sharp, and vibrant output at impressive speeds, ensuring stable performance for long-term production.

Advanced Ink Technology – Winner’s specially formulated DTF pigment ink provides rich color density, smooth gradients, and strong wash resistance. The white-ink circulation and stirring system prevents clogging and guarantees consistent results even in continuous printing.

Efficient Roll-to-Roll Printing – Supports continuous film feeding and automatic take-up, enabling high-volume production with reduced manual operation and improved printing efficiency.

Smart Temperature & Drying System – Integrated heating and drying modules ensure optimal ink adhesion and rapid film curing, resulting in excellent transfer quality and long-lasting prints.

Automatic Height Adjustment – The printer automatically detects film thickness and adjusts the printhead height to maintain perfect printing distance and precision on every job.

Low Maintenance Operation – The Winner A1 includes an automatic cleaning function, white-ink circulation, and anti-clogging system, minimizing downtime and reducing maintenance costs.

User-Friendly Design – Features a large touch control panel, easy-access ink tanks, and ergonomic structure for simplified operation and monitoring.

Professional Workflow Software – Comes with Winner Print Manager, offering color management, pass control, and production monitoring for consistent, high-quality output.

Stable and Reliable Performance – Built with a heavy-duty frame and precision-engineered motion system, the Winner A1 ensures smooth feeding, stable alignment, and long service life.

Comprehensive Support by Winner – Winner provides full technical training, online support, and a 1-year warranty with optional extended service plans—ensuring worry-free operation from setup to production.

SPECIFICATIONS

Printhead 4 × Epson I3200
Configuration CMYK+W
Print Accuracy 2400 × 1200 dpi
Print Width Max 1150 mm
Applicable System Windows 7 / 10 / 11 (64-bit)
Print Speed 6–10 m²/h
Color Configuration
Ink Consumption Approx. 10–15 ml/m²
Software RIPRINT
Net Weight 180 kg
Type of Ink Winner DTF Pigment Ink
Transmission Interface High-speed USB 3.0 / LAN
Power Voltage AC 220V
Machine Dimension (L*W*H) 1090mm*1560mm*1330mm
Package Dimension (L*W*H) 2000X1000X1200 mm
